Copper Strip Continuous Casting Line

Parameter:

Model Number	GYT-300	GYT-500	GYT-750	GYT-1000	GYT-300/200	GYT-300/300	GYT-500/300	GYT-300/300/300
Content(T)	2.5	4	5.5	7.5	3	4	4.5	5.5
Capacity per Day (T/24hours)	7.2	12	18	24	7.2	7.2	12	14.4
Ele. Capacity(KW)	80	120	180	240	130	160	200	240
Voltage(V)	380	380	380	380	380	380	380	380
Phase Number	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)
Power Factor	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95
Power Consumption(Unit/Hour)	75	120	180	240	130	160	200	240
Frequency of Input Current (HZ)	50	50	50	50	50	50	50	50
Melting Rate ( KG)	300	500	750	1000	300	300	500	600
Rating Working Temperature (℃)	1200	1200	1200	1200	1200	1200	1200	1200

All the furnaces can be customized, welcome to provide us with your requirements.

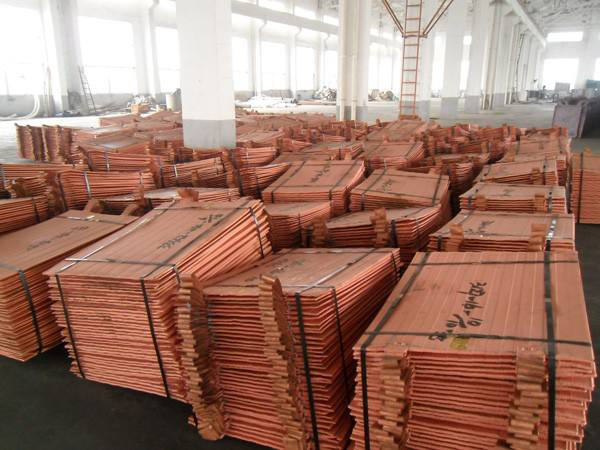

Raw Material

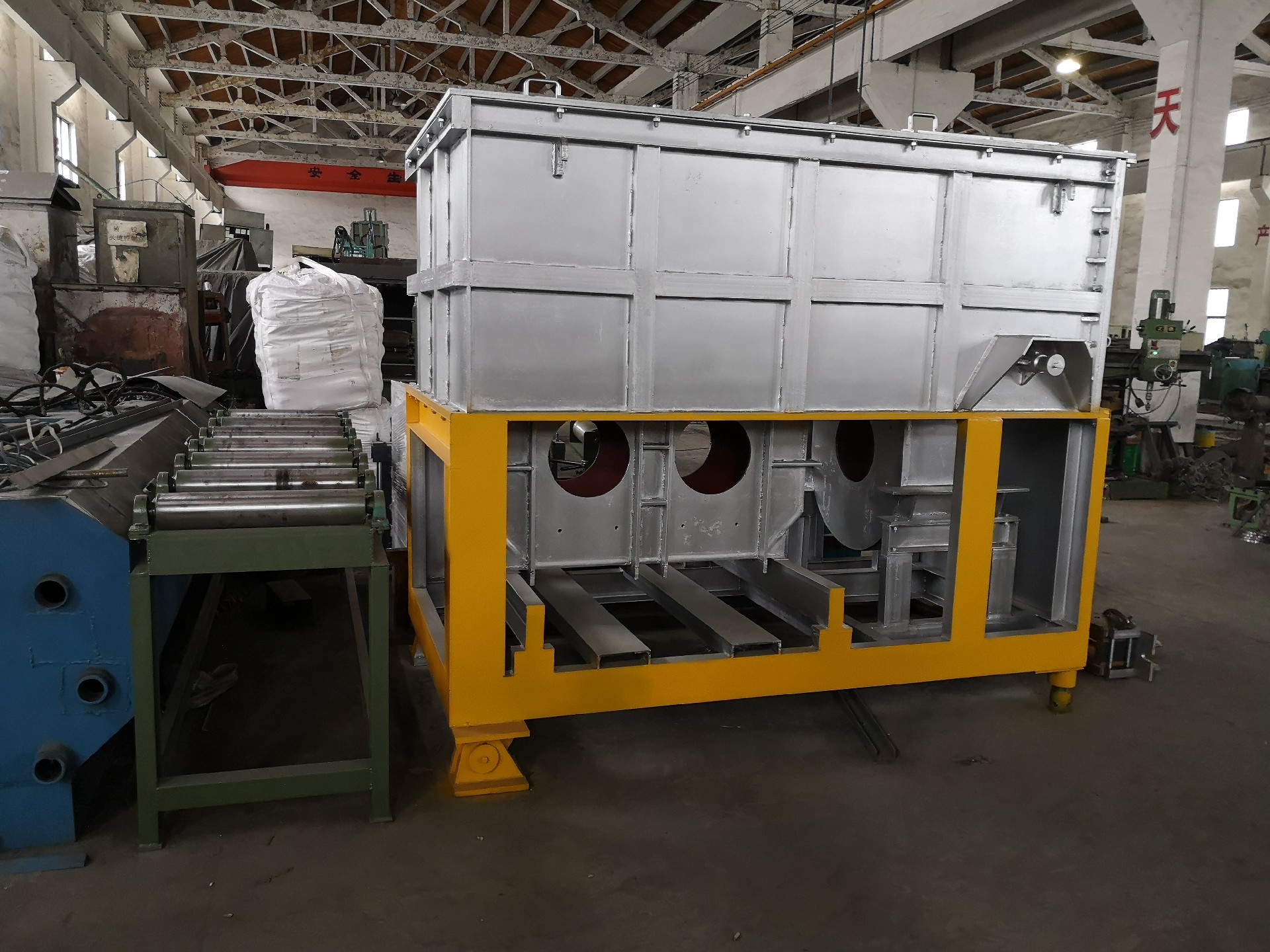

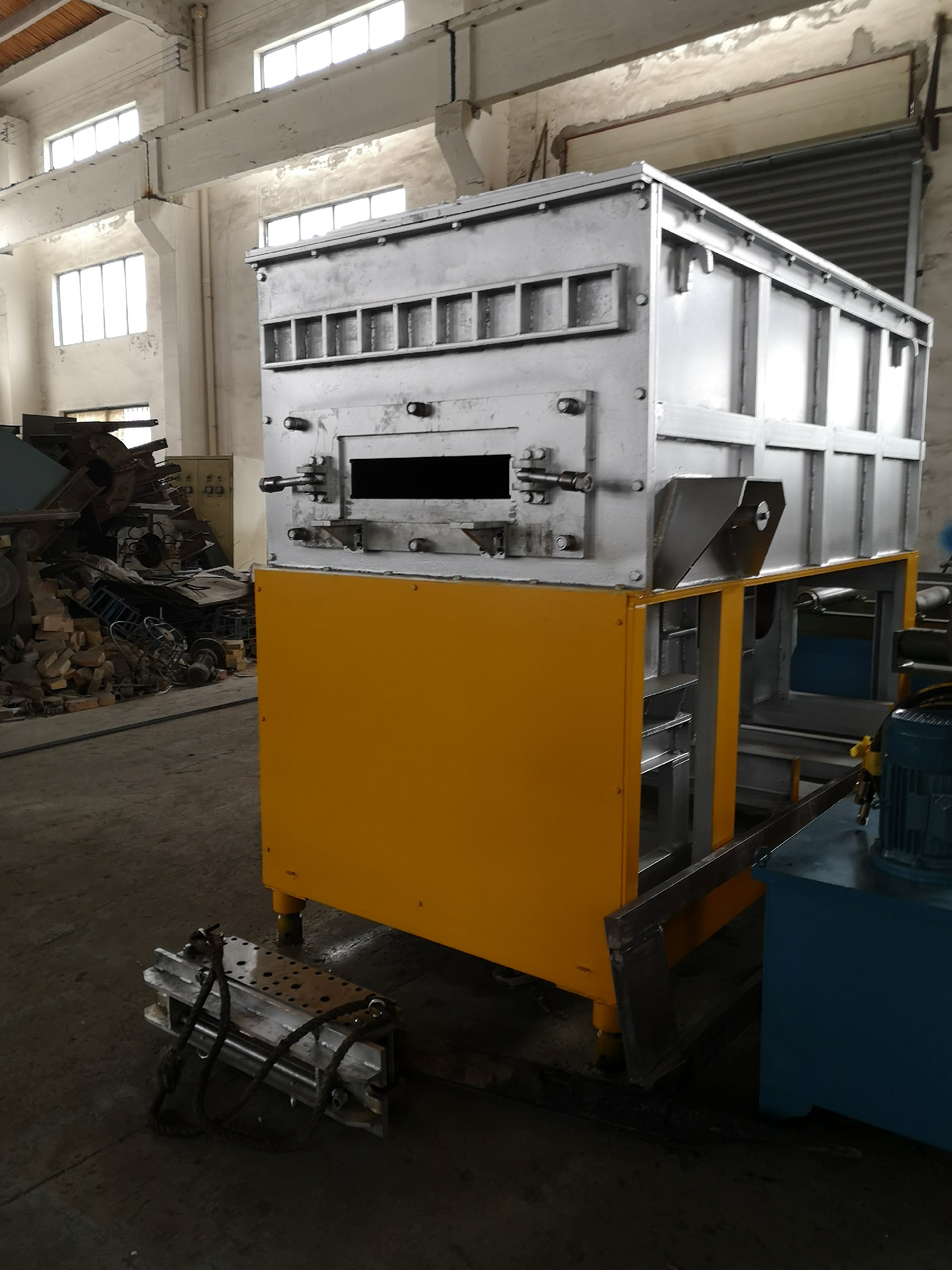

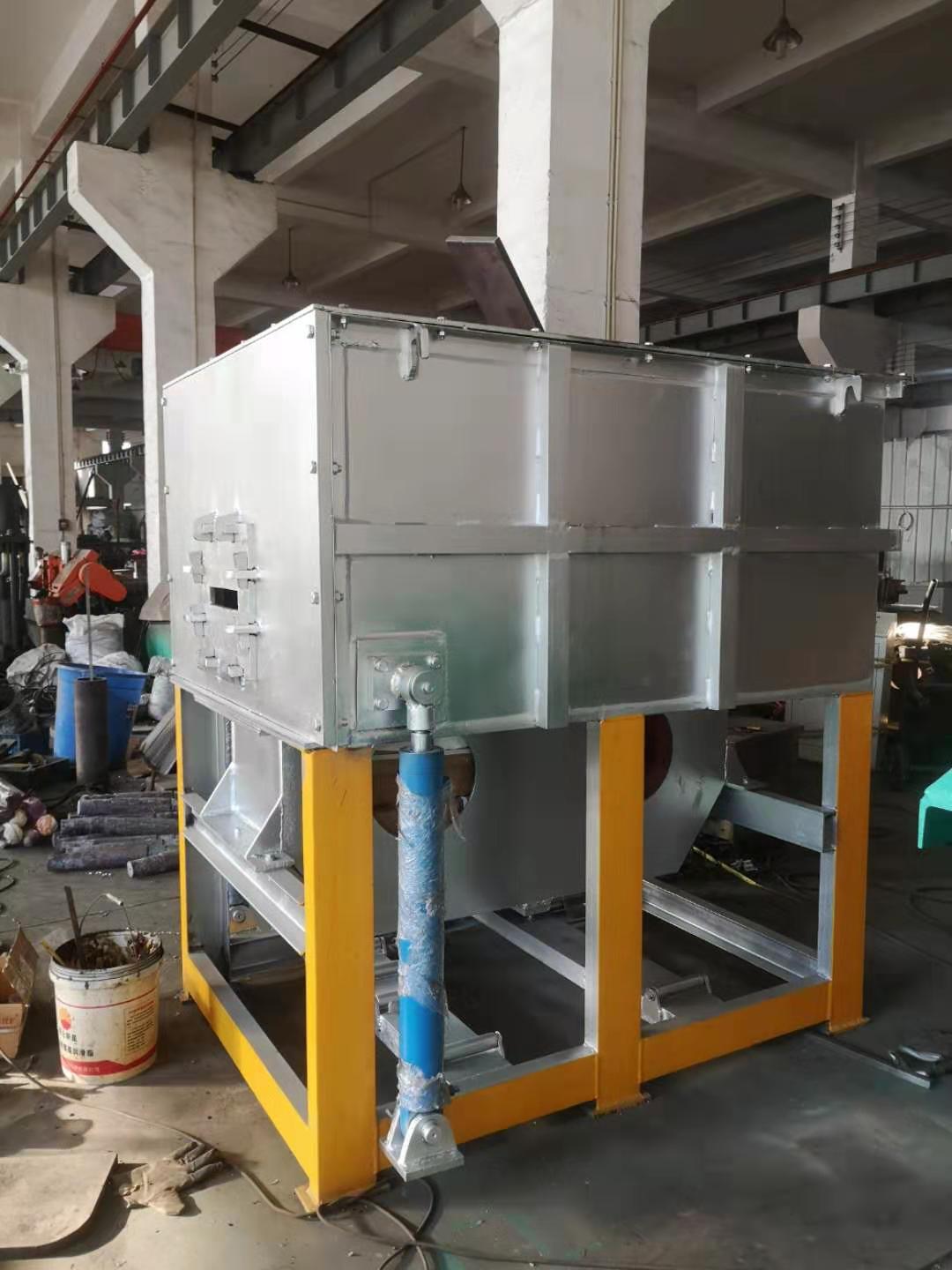

Melting/Holding Furnace and Crystallizer

The crystallizer is mounted on melting furnace for water circulation cooling.

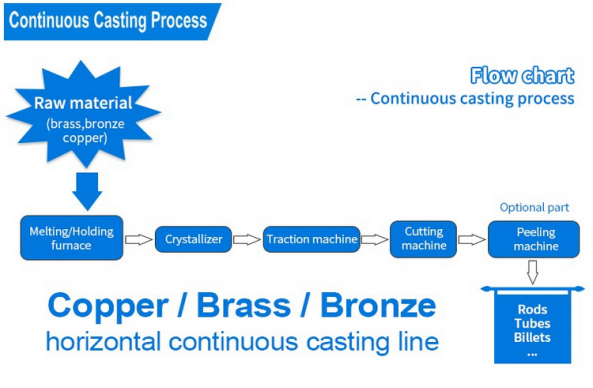

Copper Rod/Tube/Strip Horizontal Continuous Casting Plant
