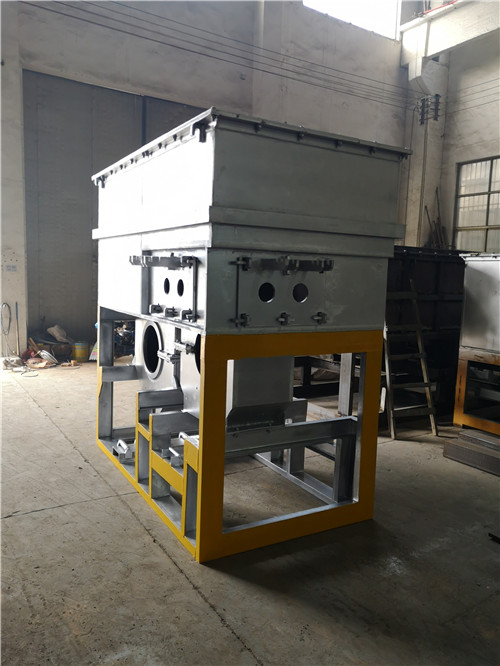

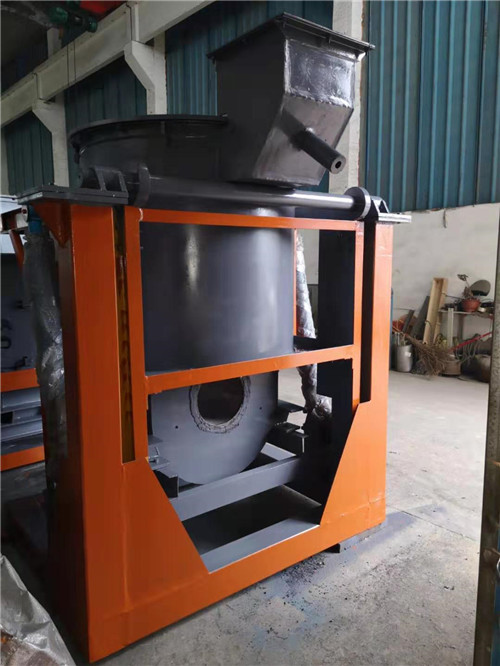

Brass Melting Furnace

Parameter:

Model Number	GYT-200	GYT-300	GYT-500	GYT-750	GYT-1000	GYT-300/200	GYT-300/300	GYT-500/300	GYT-300/300/300
Content(T)	1	2.5	4	5.5	7.5	3	4	4.5	5.5
Capacity per Day (T/24hours)	4.5	7.2	12	18	24	7.2	7.2	12	14.4
Ele. Capacity(KW)	50	80	120	180	240	130	160	200	240
Voltage(V)	380	380	380	380	380	380	380	380	380
Phase Number	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)
Power Factor	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95
Power Consumption(Unit/Hour)	50	75	120	180	240	130	160	200	240
Frequency of Input Current (HZ)	50	50	50	50	50	50	50	50	50
Melting Rate ( KG)	200	300	500	750	1000	300	300	500	600
Rating Working Temperature	1200	1200	1200	1200	1200	1200	1200	1200	1200

All the furnaces can be customized, welcome to provide us with your requirements.

Copper/Brass/Aluminium/Zinc Melting and Holding Furnace
