Straightening Machine

您的当前位置:首页 >> PRODUCTS >> Straightening Machine

Rod Tube Straightening Machine



  • 详细介绍

Straightening Machine Solution for Brass Rod 10-50mm



Option One (One Straightening machine covering 10-50mm brass rod)



Main technical parameters of w56-30 horizontal 10-roll hyperbolic straightening machine

1. Straightenable material specification: 10-50mm (brass rod)

2. Straightening speed: variable frequency adjustable

3. Number of active rolls: 3

4. Number of passive rolls: 7

5. Straightening roller material: 9Cr2MoV

6. Material curvature after straightening: 1mm/M

7. Motor model: Y180-4

8. Motor power: 11KW

9. Machine dimensions: 1800*1600*1200

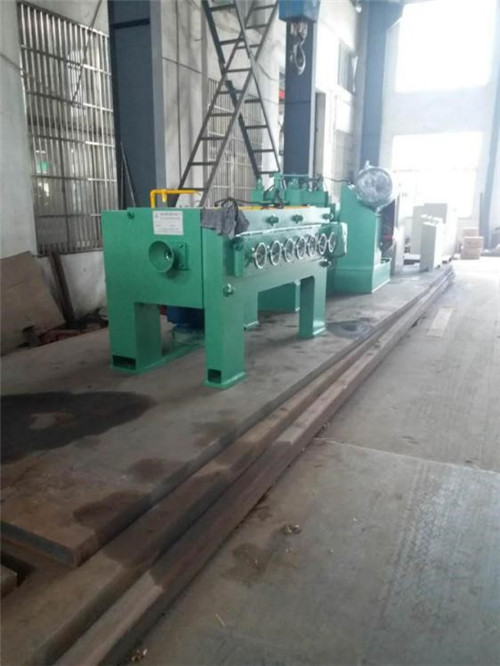

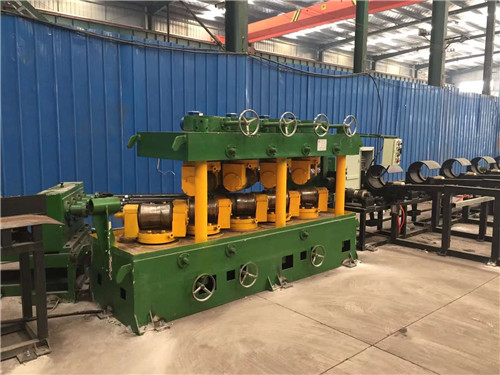

Machine Picture:




Option Two (Two Straightening machine covering 10-50mm brass rod) (suggested)



1. Straightenable material specification: 6-16mm (brass rod)

2. Straightening speed: variable frequency adjustable

3. Number of active rolls: 6

4. Number of passive rolls: 3

5. Straightening roller material: 9Cr2MoV

6. Material curvature after straightening: 0.2mm/M

7. Motor power: 1.5KW*2

8. Machine dimensions: 1400*500*1000 / 1pc; 1200*600*1100 / 2pcs

9. Machine Weight: 1.13T

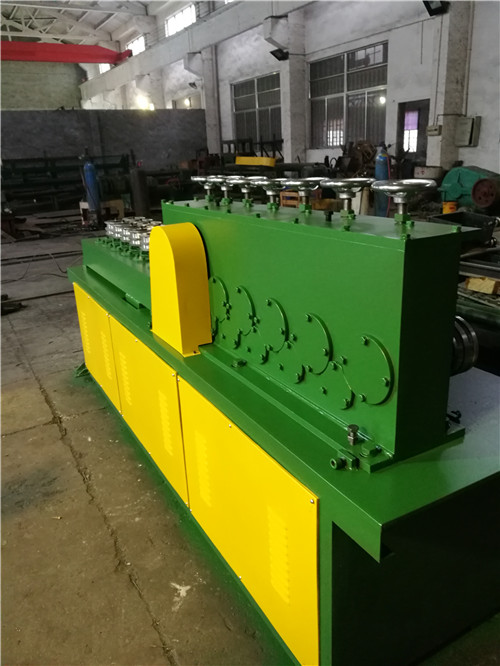

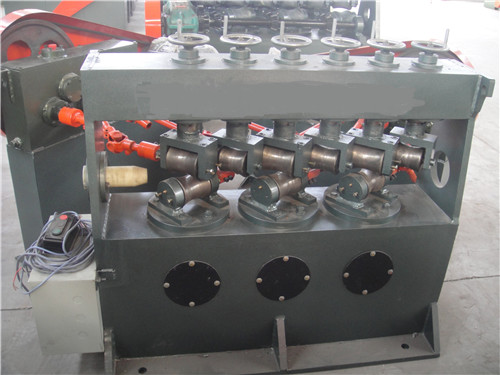

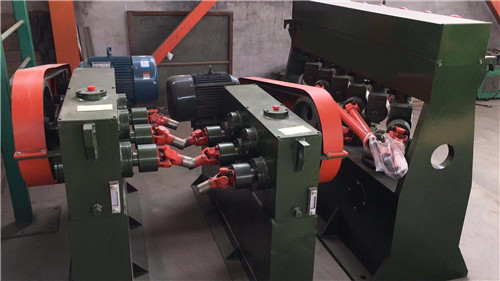

Machine Picture:





JZ-40 Nine roll single drive straightening machine : Price: 66000RMB

1. Straightenable material specification: 15-50mm (brass rod)

2. Straightening speed: variable frequency adjustable

3. Number of active rolls: 3

4. Number of passive rolls: 6

5. Straightening roller material: Cr12MoV

6. Material curvature after straightening: 0.2mm/M

7. Motor power: 7.5KW

8. Machine dimensions: 2100*1400*1600

9. Machine Weight: 2.6T

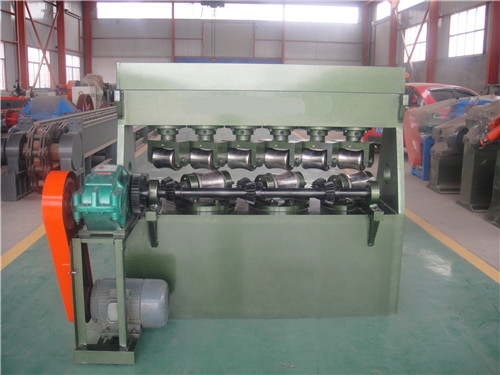

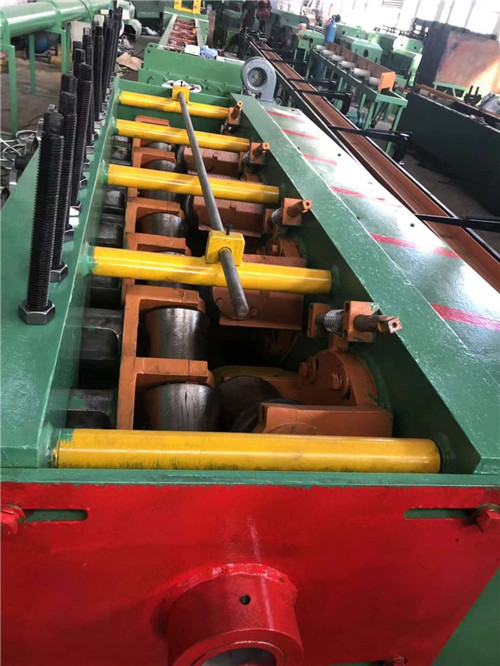

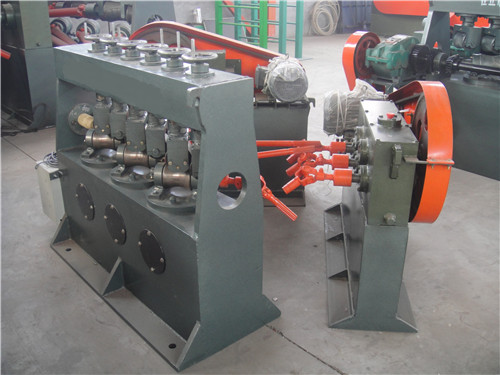

Machine picture:
